RA2E2 - R7FA2E2A72DNK

48MHz Arm® Cortex®-M23 Ultra-Low Power General Purpose Microcontroller

Description:

The RA2E2 Group is RA Family’s entry line single-chip microcontroller based on the 48-MHz Arm® Cortex®-M23 core with Renesas' innovative on-chip peripheral functions. RA2E2 Group offers ultra-low power operation and high speed serial communication with smallest package options of 20-pin and 24-pin QFN and 16-pin wafer-level CSP package, satisfying the needs of cost-sensitive and space-constrained applications. These RA2E2 Group microcontrollers enable extremely cost-effective designs for IoT sensor nodes, portable devices, industrial control, and any battery-operated application that requires developers to cut power consumption, cost and space.

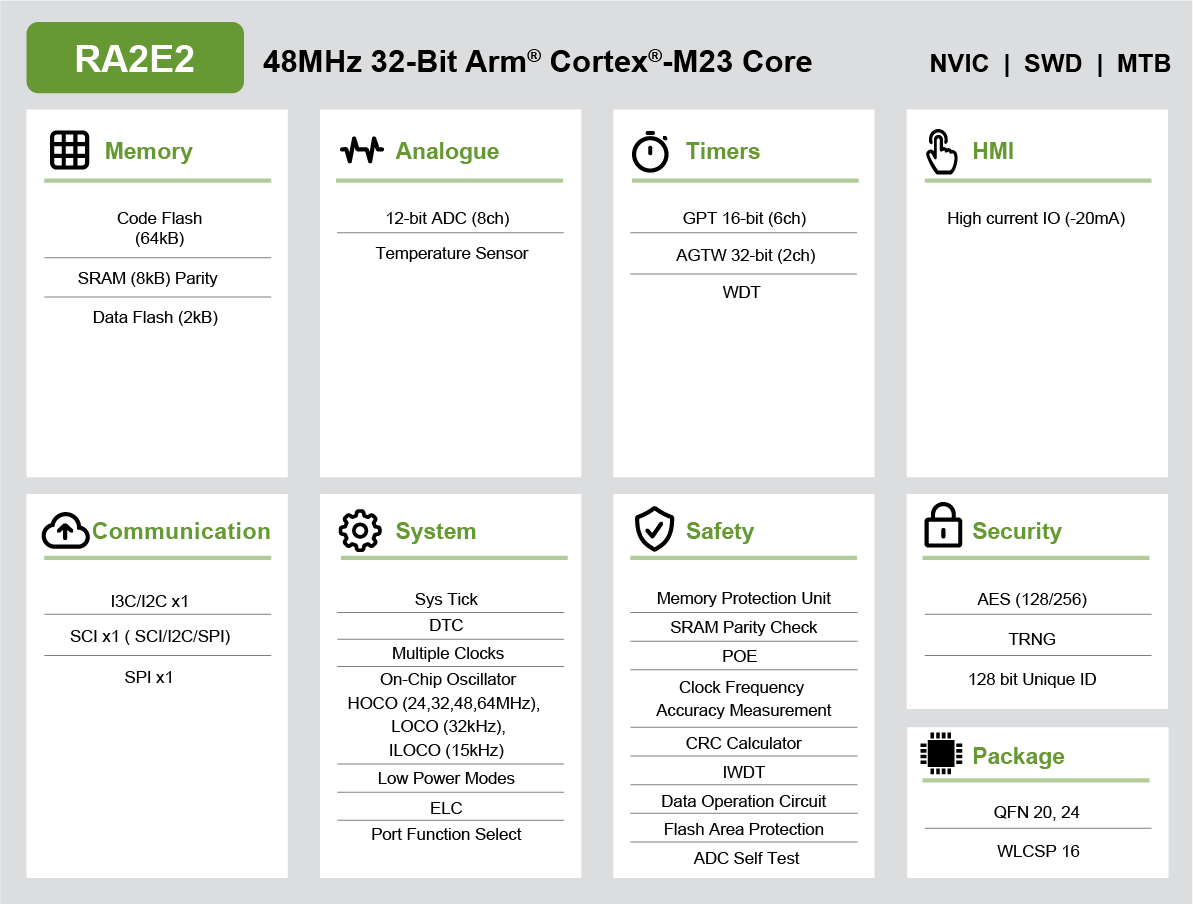

Features:

  • 48MHz Arm® Cortex®-M23
  • Up to 64kB Flash Memory and 8kB SRAM
  • 2kB Data Flash to store data as in EEPROM
  • Scalable from 16-pin to 24-pin packages
  • Wide operating voltage range of 1.6V to 5.5V
  • Enhanced Capacitive Touch Sensing Unit (CTSU)
  • Best-in-class Active/Standby power consumption in Arm Cortex-M23 microcontroller
  • 12-bit ADC, Temperature Sensor
  • 16-bit General PWM Timer, 32-bit Low power Asynchronous General Purpose Timer



  • I3C bus interface
  • SCI (UART, Simple SPI, Simple I2C)
  • SPI interface
  • Safety
  • Security and Encryption
  • 125 °C operating temperature support
  • Smallest package options (16-pin WLCSP, 20 and 24-pin HWQFN)





Applications:

  • General purpose
  • IoT devices
  • Industrial automation, industrial sensors
  • Portable consumer devices
  • Home appliances
  • Building automation
  • Medical and healthcare
  • Wearable devices



晶偉 現貨 RENESAS MCU RA2E2 - R7FA2E2A72DNK

歡迎來電、來信詢問 (02)2758-9669, andrewsu@commotec.com.tw

Datasheet - R7FA2E2A72DNK

Product ID R7FA2E2A72DNK
Product Title R7FA2E2A72DNK - 48MHz Arm® Cortex®-M23 Ultra-Low Power General Purpose Microcontroller
Program Memory (KB) 64
Data Flash (KB) 2
RAM (KB) 8
Lead Count (#) 24
Pkg. Type HWQFN
Supply Voltage (V) 1.6 - 5.5
Operating Freq (Max) (MHz) 48
LVD Yes
DMA DTC
I/O Ports 20
Timer 16-bit x 6-ch
32-bit Asynchronous Timer x 2
ADC 12-bit x 8-ch
Security & Encryption AES128, AES256, TRNG
Bit Size 32
CPU ARM CM23
Temp. Range -40 to 85°C
